  Octasound Uses Eminence!

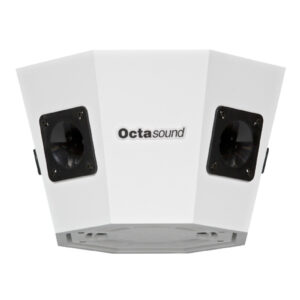

Introducing the Pre-Engineered Central Speaker SP800A - 8 Inch Model

  • Up to 5,000 Square Feet sound coverage.
  • Replace up to 20 ceiling speakers with a single unit.
  • Impact Resistant Rugged Polyurethane Elastomer Finish
  • 4 Suspension Points - Optional SPH5A available for Quick Hanging.
  • High Humidty Moisture Resistant Low Temperature Design.
  • Long Lasting Performance and extremely durable components.
  • 4 Dynamic Horn Drivers, 1 Woofer 8".
  • Manufactured in North America using Eminence components.

SP800A Downloads

SP800A Technical Specifications

Frequency Response: 40 Hz to 20 kHz
Sensitivity: 100 dB/watt/meter
Power Handling: 125 Watts RMS / 8 Ohm Impedance
Impedance: 8 Ohms Nominal
Coverage: 360° H x 180° V - 5,000 sq ft (70 x 70 ft.) approx.
Maximum S.P.L.: 121 dB RMS / 124 dB Peak at 1 meter

SP800A Physical Specifications

Temperature Range:  -10ºC to 55ºC (14ºF to 131ºF)
Humidity Range: 0% to 80% Non Condensing

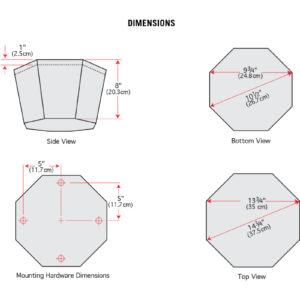

Dimensions: 8" High, 13.75" Wide at Top
Weight: 16 lbs (7.3 kg)
Material: MDF with a 3 layer scratch resistant finish.
Mounting Hardware
: Four 1½” Custom Eye Nuts, ¼ x 20 Thread.
Shipping Weight: 19 lbs (8.6 kg)
Shipping Dimensions: 16.5” (42 cm) Square, by 11” (30cm) high

SP800A Applications

  • Elementary School Gyms
  • Convention Centres
  • Meeting Rooms
  • Churches
  • Banquet Halls
  • Shopping Malls
  • Ideal for large facilities
  • Open Grid Ceilings

Contact an Octasound Sales Rep for a free System Layout
